$154.95
$185.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

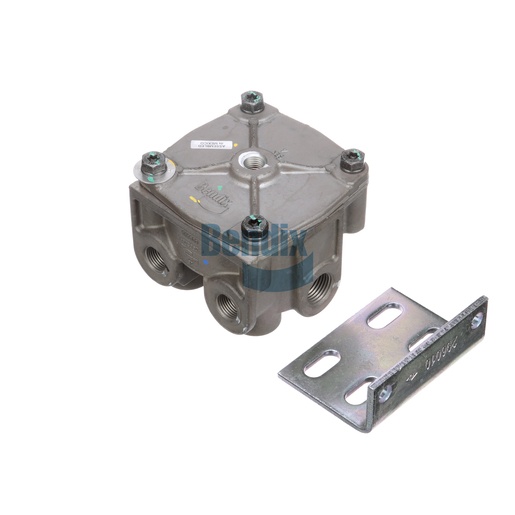

The Bendix Relay Valve is a crucial element in the air brake system, designed to optimize the distribution of air pressure for enhanced braking performance. This valve efficiently regulates the air flow within the braking system, ensuring that your vehicle responds promptly and reliably to braking commands. Weighing 1.3 kg and manufactured in Mexico, it is engineered for durability and performance under heavy-duty conditions. The relay valve is vital for maintaining the accuracy and responsiveness of your air brakes, contributing to overall vehicle safety. For those in search of genuine Bendix OEM parts, Source One Parts Center is the ultimate destination, ensuring you receive the best components for your commercial vehicles.
SPECIFICATIONS
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Height
101.0 mm (3.98 in)
Width
102.0 mm (4.02 in)
Length
107.0 mm (4.21 in)
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
5.5 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV055
Weight
2.82 lb
