065303

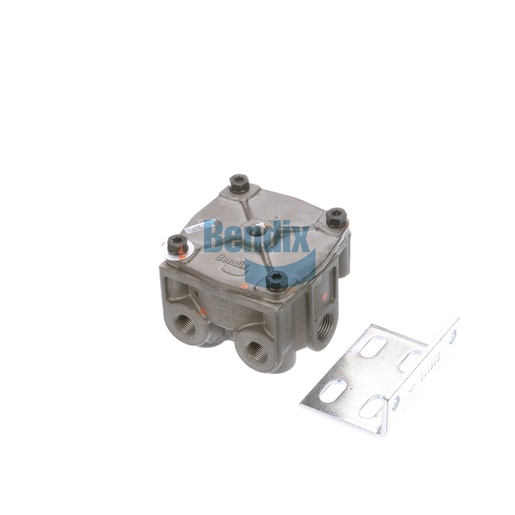

Relay Valve
Bendix

AVAILABLE

Bendix

Ships within 1-3 business days

$114.95 $137.94

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.


DESCRIPTION
The Bendix Relay Valve is a critical component in the air brake system, expertly designed to regulate and control air flow to ensure optimal braking performance in commercial vehicles. With a net weight of 1.3 kg, it provides a robust yet lightweight solution that can handle the demands of heavy-duty applications. Manufactured in Mexico, this relay valve meets strict quality standards, ensuring reliable operation and safety on the road. It features multiple ports for efficient air flow management, allowing for responsive braking action and increased control for the driver. By incorporating this high-performance relay valve into your braking system, you enhance your vehicle's safety and reliability. For genuine Bendix OEM parts that guarantee top-notch quality, Source One Parts Center is the ideal destination, dedicated to serving your commercial vehicle needs with excellence.

SPECIFICATIONS

Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Length
102.0 mm (4.02 in)
Width
102.0 mm (4.02 in)
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Height
98.0 mm (3.86 in)
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
2.78 lb
