$70.95
$85.14
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

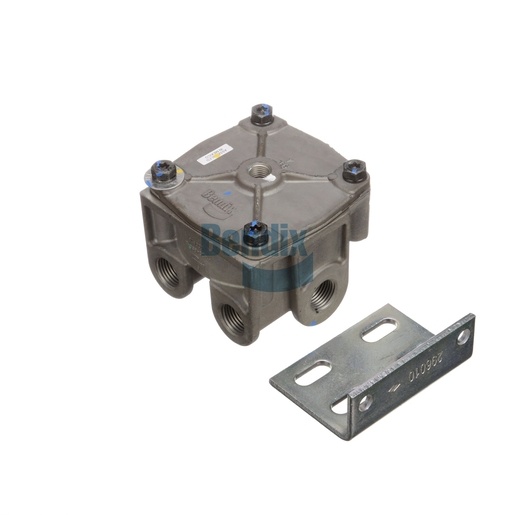

The Relay Valve from Bendix is an integral part of the air brake system, designed to enhance performance and safety in your commercial vehicle. Weighing 1.3 kg (2.87 lb), this valve effectively regulates air flow, ensuring that your braking system operates smoothly and efficiently. With its robust construction and precision engineering, the Bendix Relay Valve provides reliable performance under various conditions, helping to maintain optimal brake function. Whether you're maintaining a fleet or a single vehicle, this part is essential for ensuring that your brakes respond effectively and consistently. For high-quality Bendix parts, Source One Parts Center is the premier source for genuine OEM solutions.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Length
102.0 mm (4.02 in)
Width
102.0 mm (4.02 in)
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Height
98.0 mm (3.86 in)
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
2.87 lb
