DESCRIPTION

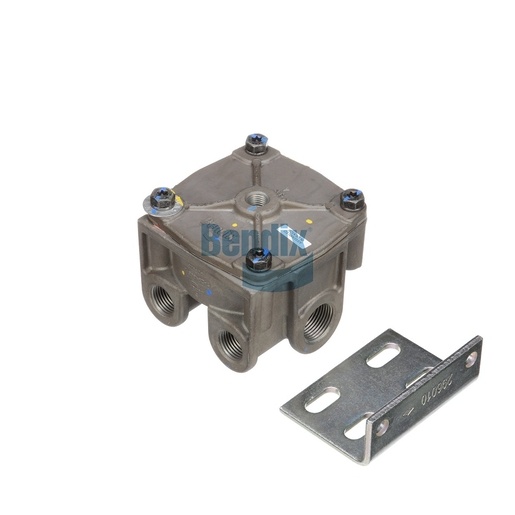

The Bendix Relay Valve is an essential component for air brake systems, specifically engineered for precision in delivering brake pressure. This valve operates effectively within a wide temperature range, from -40°F to 200°F, making it suitable for various climates and operational conditions. Weighing only 1.3 kg (2.78 lb), its compact design ensures easy installation and integration into existing brake lines. The valve’s robust construction involves a dual supply and delivery port configuration, optimizing air flow and responsiveness during braking, ensuring that your heavy-duty vehicle performs reliably under pressure. The Bendix Relay Valve is a significant player in enhancing the safety and efficiency of your braking system. When it comes to securing high-quality components for your vehicle, Source One Parts Center is your trusted partner for authentic Bendix OEM parts, ensuring your truck operates at peak performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Height
100.0 mm (3.94 in)
Length
102.0 mm (4.02 in)
Width
102.0 mm (4.02 in)
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Supply Port 1
3/4-14 NPT
Supply Port 2
3/4-14 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
2.78 lb
