$149.95
$179.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

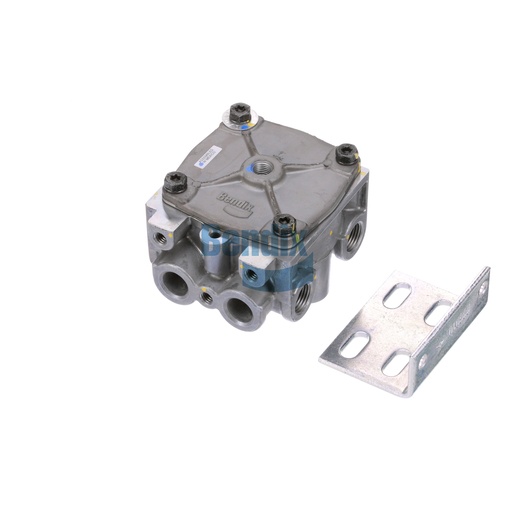

The Relay Valve from Bendix is specifically designed for air brake systems in commercial vehicles, providing essential pressure control for safe and efficient braking. This high-performance valve features a robust construction that can endure the rigors of heavy-duty applications, ensuring long-lasting durability. With a maximum operating temperature of 200 °F and a crack pressure of 4.0 PSI, it is engineered for reliable operation in various conditions. The relay valve is equipped with multiple ports for easy installation and versatility, making it suitable for a wide range of vehicle configurations. Its efficient design enhances the responsiveness of the braking system, contributing to overall vehicle safety. Trust Source One Parts Center for all your genuine Bendix OEM parts, providing you with top-notch components for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Body Configuration
1 SUP / 8 DEL (6H + 2V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Delivery Port 5
Cored Closed
Delivery Port 6
Cored Closed
Delivery Port 7
Cored Closed
Delivery Port 8
Cored Closed
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
2.62 lb
