DESCRIPTION

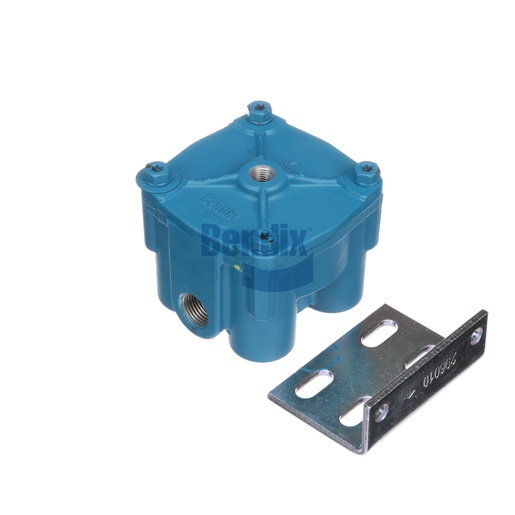

The Bendix Coreless Valve is integral to the air brake system, facilitating precise control of air flow for effective braking. This valve is engineered for optimal performance, featuring multiple delivery ports and a robust design that ensures reliability in demanding conditions. With a crack pressure of 4.0 PSI, it guarantees efficient operation while maintaining safety standards. Its compact dimensions make it easy to install, making it a practical choice for commercial truck maintenance. For those seeking genuine Bendix parts, Source One Parts Center stands out as the premier source for high-quality OEM components that ensure your vehicle performs at its best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Body Configuration
1 SUP / 4 DEL (V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Length
101.0 mm (3.98 in)
Width
101.0 mm (3.98 in)
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Height
98.0 mm (3.86 in)
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
3.09 lb
