102626R
Relay Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

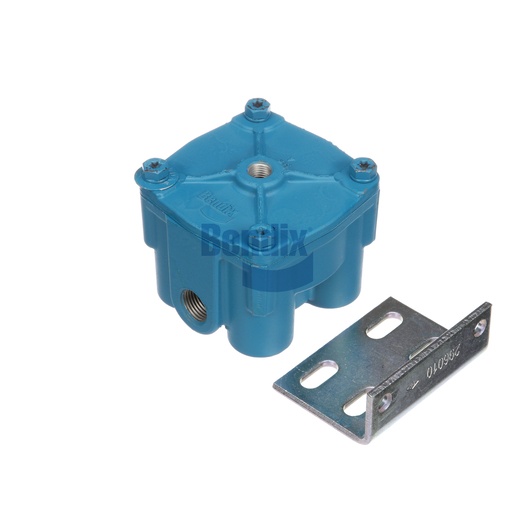

The Bendix Relay Valve is essential for the efficient operation of air brake systems in commercial vehicles. It regulates the flow of air to various components, ensuring quick and responsive braking. Designed to function in extreme temperatures, with a maximum of 200 °F (93 °C) and a minimum of -40 °F (-40 °C), this valve guarantees consistent performance in any environment. With a net weight of 1.5 kg, it combines durability with manageable handling during installation. This valve is vital for maintaining the effectiveness of your braking system, enhancing overall vehicle safety. For high-quality Bendix OEM parts, Source One Parts Center is your trusted source for reliable solutions.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Body Configuration
1 SUP / 4 DEL (V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
3.31 lb
