103009R
Relay Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

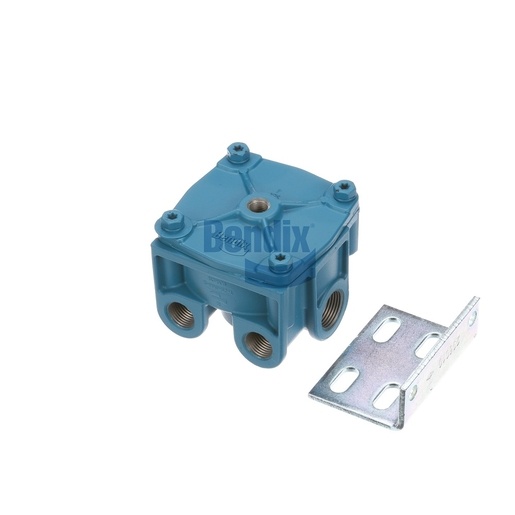

The Relay Valve from Bendix is a critical component in the air brake system, specifically designed to enhance braking performance and safety. This valve regulates air pressure, ensuring that the brakes respond effectively to driver inputs. Weighing just 1.3 kg, it is built for durability and reliability, making it suitable for heavy-duty applications. The Relay Valve features a robust design that meets high-quality standards, ensuring long-lasting performance even under extreme conditions. Its precise engineering allows for quick, responsive braking, which is essential for the safety of commercial vehicles. By investing in this Relay Valve, you enhance the overall effectiveness and responsiveness of your braking system. For genuine Bendix OEM parts, Source One Parts Center is the best source, offering reliable components that keep your commercial fleet safe on the road.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Supply Port 1
3/4-14 NPT
Supply Port 2
3/4-14 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
2.78 lb
