Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

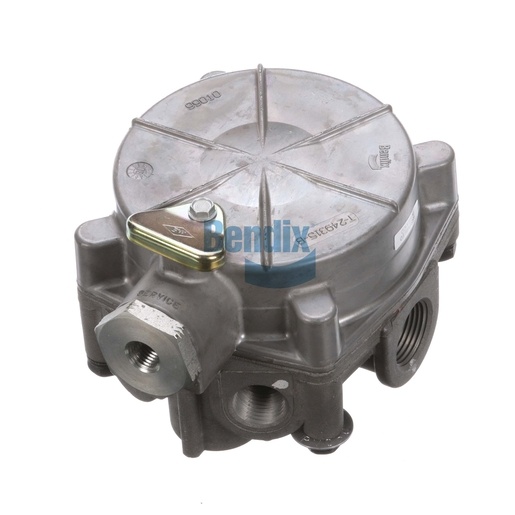

The Bendix Relay Valve is a fundamental component of your vehicle's air brake system, designed to improve the efficiency and response of your braking system. This R-12DC model is engineered for maximum performance, featuring a compact size and weighing only 1.5 kg. Its robust construction ensures durability and reliability, even in the most demanding environments. The relay valve helps in quickly directing air to the brake chambers, significantly enhancing braking response times and overall safety. With a maximum operating temperature of 200°F, this valve is built to perform under pressure. For those who demand quality and reliability in their commercial vehicle's braking systems, the Source One Parts Center is the best place to purchase genuine Bendix OEM parts.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Service Port
1/4-18 NPT
Balance Port
1/8-27 NPT
Height
110.0 mm (4.33 in)
Width
117.3 mm (4.62 in)
Length
151.1 mm (5.95 in)
Service Port Orientation (CW from Flange)
180°
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
3.0 PSI
Supply Port 1
3/4-14 NPT
Supply Port 2
3/4-14 NPT
Harmonized System (HS) Code
848120
Supply Port 3
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV030
Mounting
Standard Flange Mount - Ø 0.41 IN (2x)
Weight
3.26 lb
