Relay Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

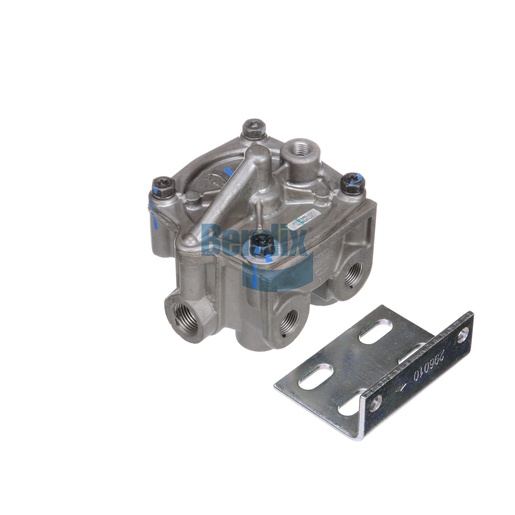

The Relay Valve is a critical component in Bendix air brake systems, designed to enhance the responsiveness and efficiency of braking operations in commercial vehicles. With a net weight of 3.0 pounds, this valve features a robust construction that ensures durability in demanding conditions. Its design allows for quick and efficient relay of air pressure, which is crucial for maintaining optimal braking performance. This valve is engineered to withstand extreme temperatures and is compatible with a variety of braking systems, making it an essential part for fleet maintenance and repairs. By investing in this high-quality relay valve, you can significantly improve your vehicle's braking response time and overall safety. Source One Parts Center is the best choice for sourcing genuine Bendix OEM parts, providing reliable components that keep your fleet operating safely.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
Crack Pressure
0.0 PSI
VMRS
013-010-009: Relay Valve - Air Brake
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RD000
Internal Supply Passage to Cover
Yes
Weight
3 lb
