801336
Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

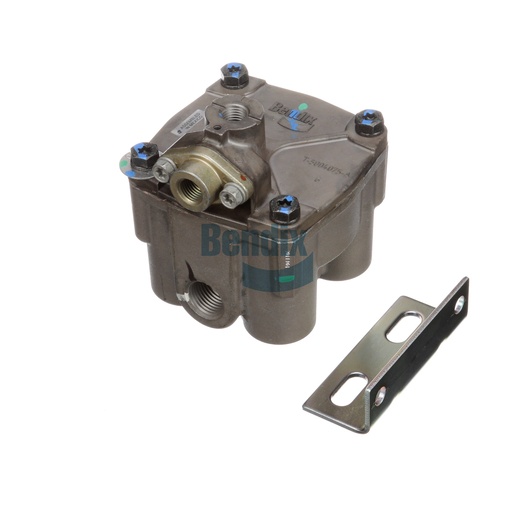

The Bendix Relay Valve is a crucial component in the air brake system, ensuring effective communication between the brake pedal and the braking mechanism. This valve allows for precise control of air flow, promoting quicker response times and improved braking performance, which is essential for the safety of commercial vehicles. Designed for durability with a robust construction, the relay valve can operate under a wide range of temperatures, making it reliable in various operational environments. With dimensions accommodating standard fittings, installation is straightforward, allowing for minimal downtime. The Bendix Relay Valve enhances the efficiency of the air brake system, ensuring that your vehicle can respond promptly in critical situations. For sourcing quality components, Source One Parts Center is the prime destination for genuine Bendix OEM parts, ensuring you get the reliability and performance you expect.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (2x)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Body Configuration
1 SUP / 4 DEL (V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Balance / Primary Service Port
1/4-18 NPT
Control / Secondary Service Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Barbed Snorkel - 1.00 IN Tube
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
3.02 lb
