$114.95
$137.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

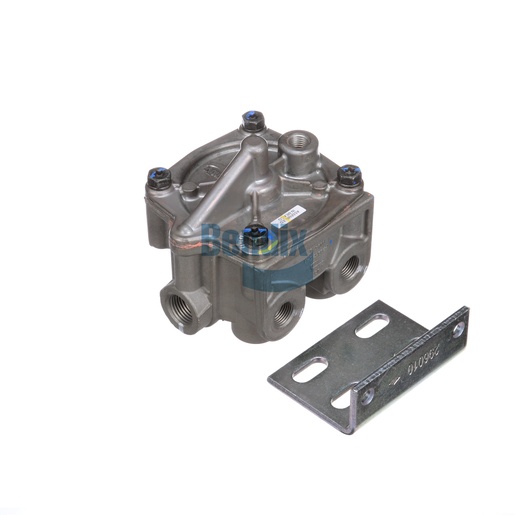

The Bendix Coreless Valve is an essential component for maintaining optimal air brake performance in commercial vehicles. Designed to manage air distribution efficiently, this valve features a robust body configuration with two supply and four delivery ports, ensuring reliable operation even under varying load conditions. Its durable construction allows it to withstand extreme temperatures ranging from -40°F to 200°F, making it suitable for a wide range of environments. With a crack pressure of 0.0 PSI, this valve guarantees precise air control, which is vital for effective braking performance. The Coreless Valve is easy to install, thanks to its standardized mounting dimensions, and comes with a loose mounting bracket for added convenience. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center stands out as the premier choice for commercial vehicle parts, ensuring reliability and quality with every purchase.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
Crack Pressure
0.0 PSI
VMRS
013-010-009: Relay Valve - Air Brake
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Length
102.0 mm (4.02 in)
Width
114.0 mm (4.49 in)
Height
118.0 mm (4.65 in)
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RD000
Internal Supply Passage to Cover
Yes
Weight
2.94 lb
