DESCRIPTION

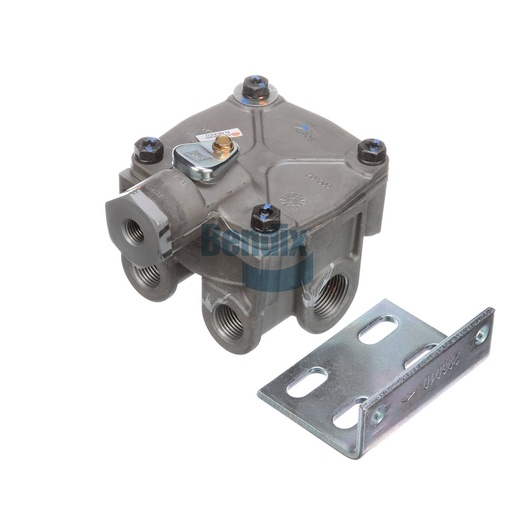

The Bendix Relay Valve is designed to enhance the efficiency and response of your vehicle's air brake system. This valve plays a crucial role in controlling the flow of air within the braking system, ensuring that brakes engage smoothly and effectively. Weighing just 1.4 kg, its robust construction is tailored for heavy-duty applications, guaranteeing reliability in demanding conditions. The precise engineering of this relay valve allows for optimal brake performance, which is essential for ensuring the safety of commercial vehicles. For anyone in need of genuine Bendix OEM parts, Source One Parts Center is the best source, providing high-quality components that meet your specific needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Width
102.0 mm (4.02 in)
Height
113.0 mm (4.45 in)
Length
138.0 mm (5.43 in)
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Supply Port 1
3/4-14 NPT
Supply Port 2
3/4-14 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
3 lb
