$114.95
$137.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

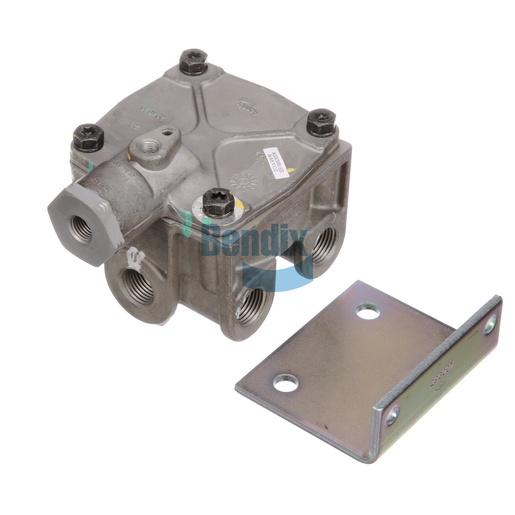

The Bendix Relay Valve is a crucial component in air brake systems, designed to optimize performance and enhance braking efficiency in commercial vehicles. This valve, weighing 1.6 kg, is engineered for reliability and precision, ensuring that air pressure is effectively managed throughout the braking system. Manufactured in Mexico, it complies with Bendix's strict quality standards, making it a trusted choice for fleet maintenance. The relay valve's design facilitates quick response times, improving overall braking performance and safety. By investing in genuine Bendix parts, you are ensuring the integrity of your vehicle's braking system. For high-quality Bendix OEM parts, Source One Parts Center is the premier destination, offering authentic products that you can rely on.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Length
101.0 mm (3.98 in)
Height
111.0 mm (4.37 in)
Width
138.0 mm (5.43 in)
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Control Port Orientation (CW from Front Face)
270°
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848110,848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Mounting
Ø .433 IN (2x)
Weight
3.48 lb
