DESCRIPTION

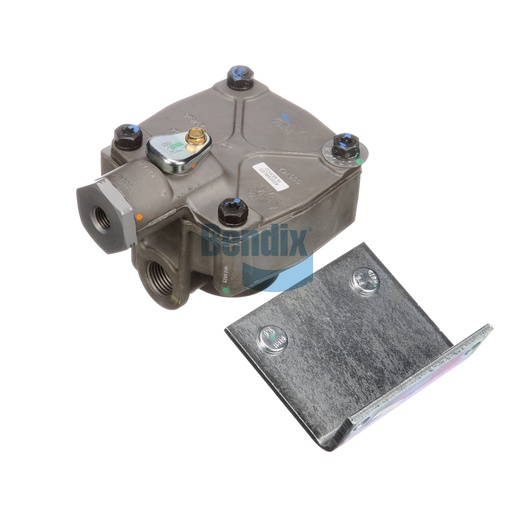

The Bendix Relay Valve is designed to enhance the performance of your vehicle's braking system by regulating the flow of air effectively. This valve features a robust configuration with multiple supply and delivery ports, allowing for precise control during braking operations. With a crack pressure of 4.0 PSI and a lightweight design of 1.6 kg (3.5 lb), this relay valve is engineered for optimal responsiveness and reliability, making it a crucial component for safety. It is essential for ensuring that your vehicle’s braking system performs efficiently under various conditions. For top-quality components, Source One Parts Center is the finest place to purchase genuine Bendix OEM parts, ensuring your vehicle is built to last.
SPECIFICATIONS
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
4.0 PSI
Mounting
5/16-18 UNC-2A Stud (2x)
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
3.5 lb
