OR103010

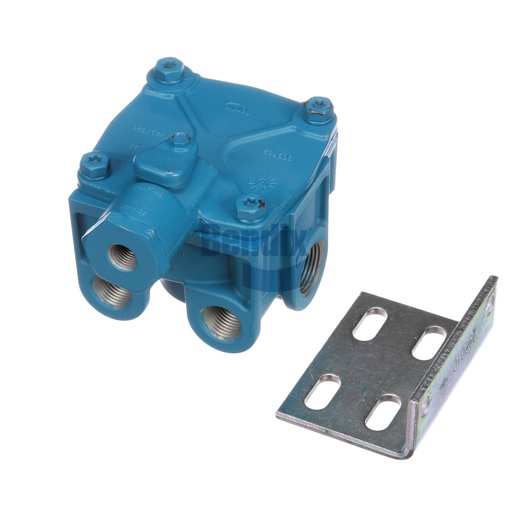

CORELESS VALVE
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Coreless Valve is an essential component for the efficient operation of air brake systems in commercial vehicles. Designed to manage air flow effectively, this valve ensures optimal performance and responsiveness during braking. Its durable construction allows it to withstand extreme operating conditions, with a temperature range from -40°F to 200°F, making it reliable in various environments. With precise engineering, this valve contributes to the overall efficiency of your braking system. Sourced from Mexico, it meets strict OEM standards for quality and performance. For top-notch genuine Bendix OEM parts, look no further than Source One Parts Center, where quality and reliability are guaranteed.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Width
102.0 mm (4.02 in)
Height
113.0 mm (4.45 in)
Length
138.0 mm (5.43 in)
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Supply Port 1
3/4-14 NPT
Supply Port 2
3/4-14 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
3 lb
