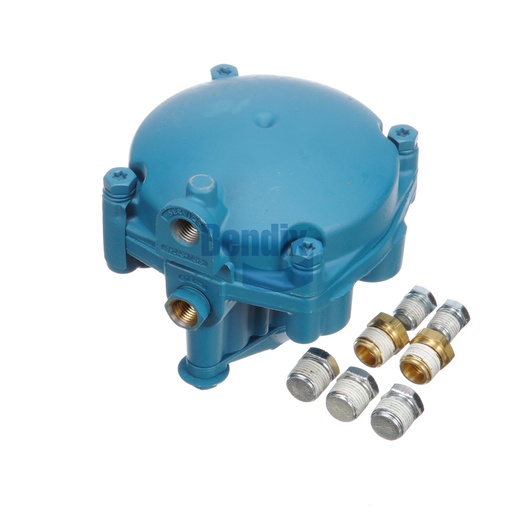

281865R
Relay Emergency Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix relay emergency valve is a critical component designed to enhance the safety of your air brake system, allowing for quick and reliable emergency braking. This valve is engineered to manage airflow effectively, ensuring that emergency applications are handled with precision and speed. Weighing just 1.5 kg, it features a compact design that fits seamlessly into your existing brake system without compromising performance. Its high-quality construction ensures reliability and durability, making it an essential part for fleet operators and truck owners. For sourcing genuine Bendix OEM parts, Source One Parts Center is your trusted partner, providing unparalleled quality for your commercial vehicle components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-037: Relay - Emergency, Air Brake
Delivery Port 3
1/4-18 NPT
Delivery Port 4
1/4-18 NPT
Emergency Supply Port
1/4-18 NPT
Service Port
1/4-18 NPT
Height
113.8 mm (4.48 in)
Width
124.0 mm (4.88 in)
Length
128.8 mm (5.07 in)
Crack Pressure
2.0 PSI
Initial Emergency Application
20 - 45 PSI
Maximum Operating Temperature
200 °F (93 °C)
Reservoir Port 1
3/4-14 NPT
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Reservoir Port 2
3/8-18 NPT
Complete Emergency Release
65 PSI MAX
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Regulatory Compliance
Not FMVSS121 Compliant (Dolly System)
TMC Washer
RE020
Weight
3.22 lb
