DESCRIPTION

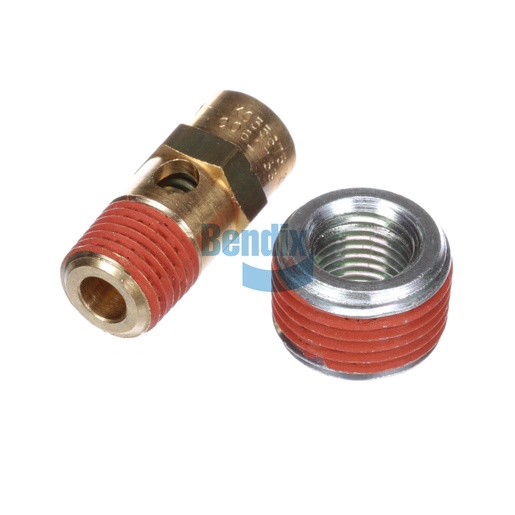

The Safety Valve from Bendix is a vital component designed to enhance the safety and reliability of your vehicle's braking system. This valve is engineered to prevent over-pressurization, ensuring that your air brake system operates within safe limits. With a closing pressure set at 50% of the nominal opening pressure and an opening pressure of 250 ± 10 PSI, this valve provides a critical safety mechanism. Its lightweight design, weighing just 0.1 kg, allows for easy installation while maintaining durability. The Safety Valve is a crucial part of any comprehensive brake system, contributing to overall vehicle safety. Source One Parts Center is your best choice for authentic Bendix OEM parts, guaranteeing quality and reliability for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-073: Safety Valve
Inlet Port
1/4-18 NPT
Number of Vents
2
Maximum Operating Temperature
250 °F (121 °C)
Opening Pressure
250 ± 10 PSI
Closing Pressure
50% of the Nominal Opening Pressure
Harmonized System (HS) Code
848140
Hex Size
9/16 IN
Adjustable
No
Thread Sealant
Pre-Applied
Country of Origin
United States
Vent
Ø .281 IN
Weight
0.18 lb
