DESCRIPTION

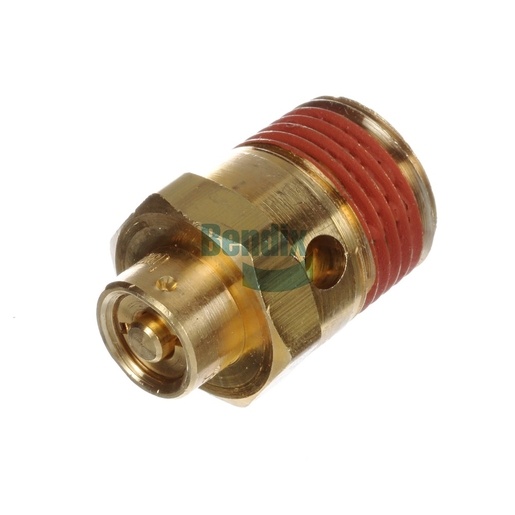

The Safety Valve is an essential component of your vehicle's braking system, designed to prevent over-pressurization and ensure safe operation. With an opening pressure of 250 ± 10 PSI, this valve automatically releases excess pressure, protecting your air system from potential damage. Constructed with high-quality materials, this valve is engineered to withstand extreme temperatures ranging from -40°F to 250°F, ensuring reliability in diverse operating conditions. Its compact design, with a net weight of only 0.1 kg, allows for easy installation in various applications. The Safety Valve is crucial for maintaining optimal braking performance, providing peace of mind for drivers and fleet operators alike. Choose the Safety Valve for a dependable solution to air system management. Source One Parts Center is your best source for genuine Bendix OEM parts, ensuring you receive products that meet the highest standards of quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-073: Safety Valve
Inlet Port
1/2-14 NPT
Number of Vents
2
Height
22.2 mm (0.88 in)
Width
22.2 mm (0.88 in)
Maximum Operating Temperature
250 °F (121 °C)
Opening Pressure
250 ± 10 PSI
Length
35.1 mm (1.38 in)
Closing Pressure
50% of the Nominal Opening Pressure
Hex Size
7/8 IN
Harmonized System (HS) Code
848140
Adjustable
No
Thread Sealant
Pre-Applied
Country of Origin
United States
Vent
Ø .281 IN
Weight
0.13 lb
