$46.95
$56.34
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

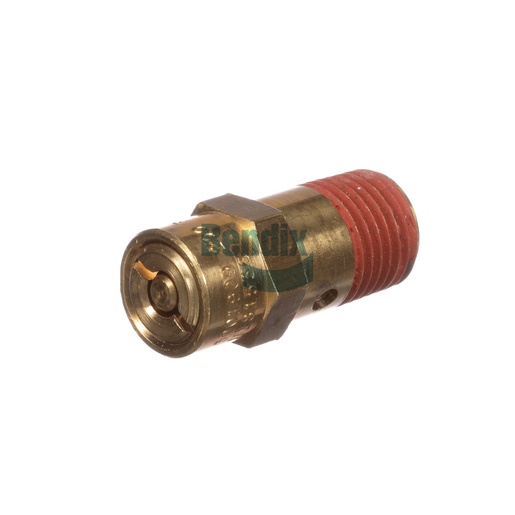

The Safety Valve is a crucial safety feature in your vehicle's air brake system, designed to prevent over-pressurization and protect the integrity of your braking processes. This valve operates by releasing excess pressure, ensuring that your system remains within safe operating limits, and preventing potential brake failures. With a compact design that measures just 14.3 mm, it is lightweight yet robust, making it a reliable choice for any commercial vehicle. Its adjustable characteristics allow it to operate efficiently under various conditions, ensuring consistent performance during use. Regular inspections of the safety valve are vital for maintaining the overall safety of your braking system. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center stands out as the premier choice, ensuring you receive high-quality components for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-073: Safety Valve
Number of Vents
1
Inlet Port
1/4-18 NPT
Height
14.3 mm (0.56 in)
Width
14.3 mm (0.56 in)
Opening Pressure
200 ± 10 PSI
Maximum Operating Temperature
250 °F (121 °C)
Length
34.3 mm (1.35 in)
Closing Pressure
50% of the Nominal Opening Pressure
Harmonized System (HS) Code
848140
Hex Size
9/16 IN
Adjustable
No
Thread Sealant
Pre-Applied
Country of Origin
United States
Vent
Ø .125 IN
Weight
0.09 lb
