$27.95
$33.54
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

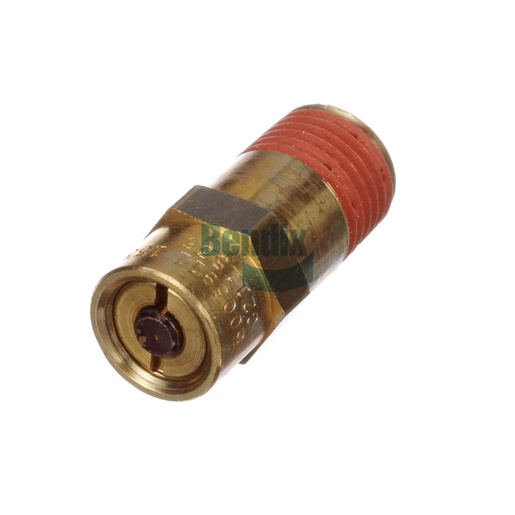

The Bendix Safety Valve is a critical component designed to enhance the safety of air brake systems in commercial vehicles. This valve is engineered to automatically release excess pressure, preventing potential damage to the braking system and ensuring optimal performance. With a closing pressure set to 50% of the nominal opening pressure, it operates reliably under various conditions, contributing to the overall safety of the vehicle. Its compact design allows for easy installation in tight spaces, making it a practical choice for fleet maintenance. The valve is built to withstand extreme temperatures, ensuring consistent operation regardless of environmental conditions. By integrating this safety valve into your braking system, you can enhance vehicle safety and reliability on the road. For all your genuine Bendix OEM parts, Source One Parts Center is the best place to find reliable and quality components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-073: Safety Valve
Number of Vents
1
Inlet Port
1/4-18 NPT
Height
14.3 mm (0.56 in)
Width
14.3 mm (0.56 in)
Opening Pressure
153 ± 7 PSI
Maximum Operating Temperature
250 °F (121 °C)
Length
34.3 mm (1.35 in)
Closing Pressure
50% of the Nominal Opening Pressure
Harmonized System (HS) Code
848140
Hex Size
9/16 IN
Adjustable
No
Thread Sealant
Pre-Applied
Country of Origin
United States
Vent
Ø .125 IN
Weight
0.09 lb
