This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

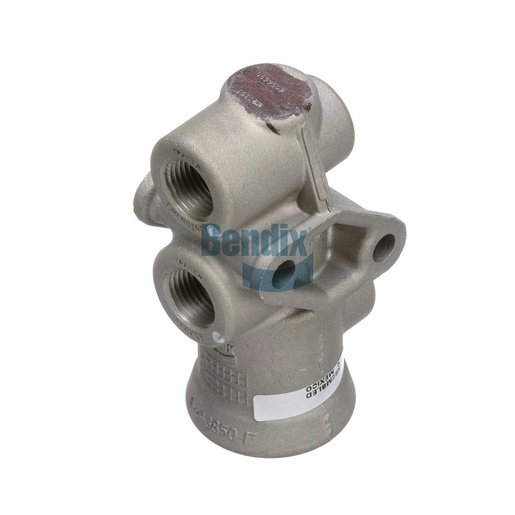

The Bendix Tractor Protection Valve is a critical component designed to enhance the safety and reliability of your truck's braking system. This valve prevents air loss in the event of a trailer disconnect, ensuring that the trailer's brakes remain engaged. With a maximum operating temperature of 200°F and a minimum of -40°F, it is built to withstand the harshest conditions while maintaining optimal performance. The valve features a unique dust shield exhaust port, adding an extra layer of protection against contamination. Its compact design, weighing only 0.9 pounds, makes it easy to install without compromising space. The tractor protection port's design allows for easy integration with your existing air system, providing peace of mind on the road. For top-notch quality and reliability, choose this valve for your commercial vehicle. Source One Parts Center is the best choice for sourcing genuine Bendix OEM parts, ensuring your truck maintains peak performance and safety.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-016: Tractor Protection Control Valve
Trailer Service Port
1/2-14 NPT
Trailer Supply Port
1/2-14 NPT
Tractor Protection Port
1/4-18 NPT
Length
120.7 mm (4.75 in)
Maximum Operating Temperature
200 °F (93 °C)
Service Line Shut-Off Pressure
25 ± 3 PSI
Tractor Service Port
3/8-18 NPT
Service Line Opening Pressure
35 ± 5 PSI
Width
51.6 mm (2.03 in)
Height
65.0 mm (2.56 in)
Harmonized System (HS) Code
848120,848140
Mounting Type
Cab / Chassis
Exhaust Port
Dust Shield
Country of Origin
Mexico
Vent
No
Mounting
Ø .35 IN (2x)
Weight
0.9 lb
