279000R

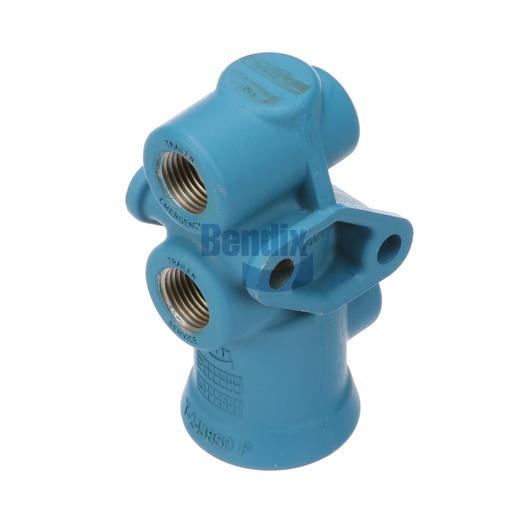

Tractor Protection Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Tractor Protection Valve from Bendix is an essential component for enhancing the safety and efficiency of your vehicle's air brake system. This valve plays a critical role in preventing air loss during trailer disconnects, ensuring that your braking system remains operational and secure at all times. Designed to withstand the rigors of heavy-duty applications, this valve is built for durability and reliability, providing peace of mind for fleet operators and drivers alike. With a compact design and straightforward installation, the Tractor Protection Valve simplifies maintenance and reduces downtime, making it a smart investment for any commercial vehicle. This genuine Bendix part is crafted from high-quality materials to ensure long-lasting performance under extreme conditions. When it comes to sourcing authentic Bendix OEM parts, Source One Parts Center stands out as your go-to supplier, offering unmatched quality and service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-016: Tractor Protection Control Valve
Trailer Service Port
1/2-14 NPT
Trailer Supply Port
1/2-14 NPT
Tractor Protection Port
1/4-18 NPT
Length
120.7 mm (4.75 in)
Maximum Operating Temperature
200 °F (93 °C)
Service Line Shut-Off Pressure
25 ± 3 PSI
Tractor Service Port
3/8-18 NPT
Service Line Opening Pressure
35 ± 5 PSI
Width
51.6 mm (2.03 in)
Height
65.0 mm (2.56 in)
Harmonized System (HS) Code
848120,848140
Mounting Type
Cab / Chassis
Exhaust Port
Dust Shield
Country of Origin
Mexico
Vent
No
Mounting
Ø .35 IN (2x)
Weight
0.88 lb
