This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

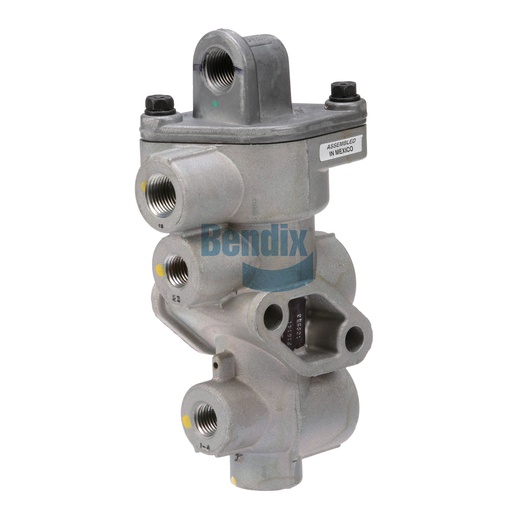

The Tractor Protection Valve is an essential component of your vehicle's air brake system, ensuring that the trailer remains connected and operational in case of a sudden loss of air pressure. This TP-3DC model is designed for reliability, preventing unintended trailer disengagement and enhancing safety on the road. With a compact design and a net weight of 0.6 kg, it is easy to install and maintain, making it an ideal choice for fleets. Its robust construction ensures that it can handle the rigors of heavy-duty use. For all your Bendix OEM part needs, Source One Parts Center stands out as the best source for quality and dependability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-016: Tractor Protection Control Valve
Trailer Service Port
1/2-14 NPT
Trailer Supply Port
1/2-14 NPT
Auxiliary Supply Port
1/4-18 NPT
Stop Light Switch Port
1/4-18 NPT
Tractor Protection Port
1/4-18 NPT
Length
171.7 mm (6.76 in)
Service Line Shut-Off Pressure
20 ± 5 PSI
Maximum Operating Temperature
200 °F (93 °C)
Tractor Control Port (Primary)
3/8-18 NPT
Tractor Control Port (Secondary)
3/8-18 NPT
Width
55.6 mm (2.19 in)
Height
82.8 mm (3.26 in)
Harmonized System (HS) Code
848120
Mounting Type
Cab / Chassis
Country of Origin
Mexico
Trailer Service Quick Release
No
Trailer Supply Quick Release
No
Vent
Yes
Mounting
Ø .34 IN (2x)
Weight
1.41 lb
