This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

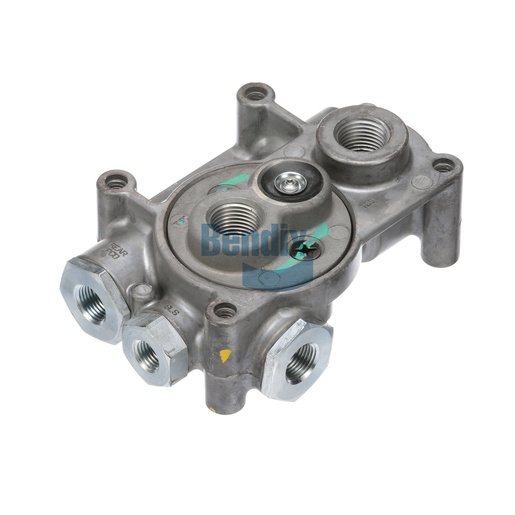

The Bendix Tractor Protection Valve is a critical safety feature in your vehicle's air brake system, designed to prevent tractor-trailer separation during braking. This valve ensures that the trailer's brakes are activated in the event of a disconnect, enhancing safety on the road. Weighing 1.1 kg, this durable valve is engineered to withstand the demanding conditions of commercial trucking, ensuring reliable performance over time. Its design allows for easy installation and compatibility with various braking systems, making it an essential upgrade for any truck. By integrating this tractor protection valve, you increase the safety and reliability of your vehicle, providing peace of mind while driving. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring quality and reliability for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-016: Tractor Protection Control Valve
Trailer Service Port
1/2-14 NPT
Trailer Supply Port
1/2-14 NPT
Stop Light Switch Port
1/4-18 NPT
Service Line Shut-Off Pressure
10 PSI (MIN)
Width
107.7 mm (4.24 in)
Length
144.8 mm (5.7 in)
Maximum Operating Temperature
200 °F (93 °C)
Tractor Control Port (Primary)
3/8-18 NPT
Tractor Control Port (Secondary)
3/8-18 NPT
Tractor Protection Port
3/8-18 NPT
Trailer Control Port
3/8-18 NPT
Mounting
5/16-18 UNC-2B with .62 MIN full thread (8x)
Service Line Opening Pressure
50 PSI (MAX)
Height
58.9 mm (2.32 in)
Harmonized System (HS) Code
848120,848140
Mounting Type
Cab / Chassis
Exhaust Port
Dust Shield
Country of Origin
Mexico
Trailer Service Quick Release
Yes
Vent
Yes
Weight
2.38 lb
