288605R

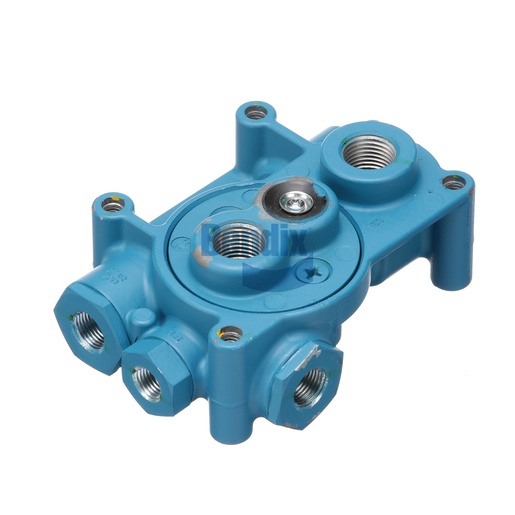

Tractor Protection Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Tractor Protection Valve is a vital component that enhances the safety and efficiency of commercial vehicle braking systems. This valve is designed to prevent the trailer from losing air pressure in the event of a disconnection, ensuring that the trailer brakes remain engaged. With a lightweight design of 0.3 kg, it is easy to install and maintain, making it an ideal choice for busy fleet operators. The durable construction ensures it can withstand harsh conditions, providing reliable performance even in extreme temperatures. This valve is crucial for maintaining optimal braking performance, ensuring both the tractor and trailer operate safely. For sourcing top-tier genuine Bendix OEM parts, Source One Parts Center is your trusted destination, guaranteeing quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-016: Tractor Protection Control Valve
Trailer Service Port
1/2-14 NPT
Trailer Supply Port
1/2-14 NPT
Stop Light Switch Port
1/4-18 NPT
Service Line Shut-Off Pressure
10 PSI (MIN)
Width
107.7 mm (4.24 in)
Length
144.8 mm (5.7 in)
Maximum Operating Temperature
200 °F (93 °C)
Tractor Control Port (Primary)
3/8-18 NPT
Tractor Control Port (Secondary)
3/8-18 NPT
Tractor Protection Port
3/8-18 NPT
Trailer Control Port
3/8-18 NPT
Mounting
5/16-18 UNC-2B with .62 MIN full thread (8x)
Service Line Opening Pressure
50 PSI (MAX)
Height
58.9 mm (2.32 in)
Harmonized System (HS) Code
848120
Mounting Type
Cab / Chassis
Exhaust Port
Dust Shield
Country of Origin
Mexico
Trailer Service Quick Release
Yes
Vent
Yes
Weight
2.5 lb
