$479.95
$575.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

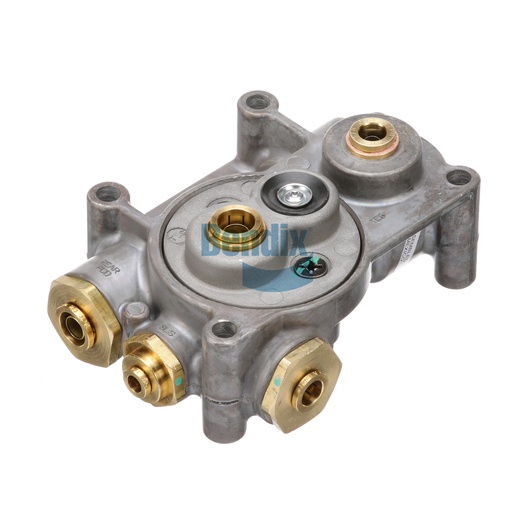

The Tractor Protection Valve is essential for maintaining safe and effective trailer braking systems. Designed for simplicity and reliability, this valve features a compact design that integrates seamlessly into your truck's braking system. With multiple ports for easy connection and a robust construction that withstands temperatures from -40°F to 200°F, this valve ensures optimal performance in various conditions. Its lightweight design adds minimal weight to your vehicle while enhancing braking efficiency. With the capability to handle multiple functions, this valve is a crucial component for safe operations. Source One Parts Center is your best option for genuine Bendix OEM parts, ensuring you receive authentic components that meet the highest performance standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-016: Tractor Protection Control Valve
Tractor Control Port (Primary)
1/2 PTC
Tractor Control Port (Secondary)
1/2 PTC
Trailer Service Port
1/2 PTC
Stop Light Switch Port
1/4 PTC
Service Line Shut-Off Pressure
10 PSI (MIN)
Width
110.7 mm (4.36 in)
Length
150.4 mm (5.92 in)
Maximum Operating Temperature
200 °F (93 °C)
Tractor Protection Port
3/8 PTC
Trailer Control Port
3/8 PTC
Trailer Supply Port
3/8 PTC
Height
71.9 mm (2.83 in)
Harmonized System (HS) Code
848120,848180
Mounting Type
Cab / Chassis
Exhaust Port
Dust Shield
Country of Origin
Mexico
Trailer Service Quick Release
Yes
Vent
Yes
Mounting
Ø .34 IN (4x)
Weight
2.71 lb
