$379.95
$455.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

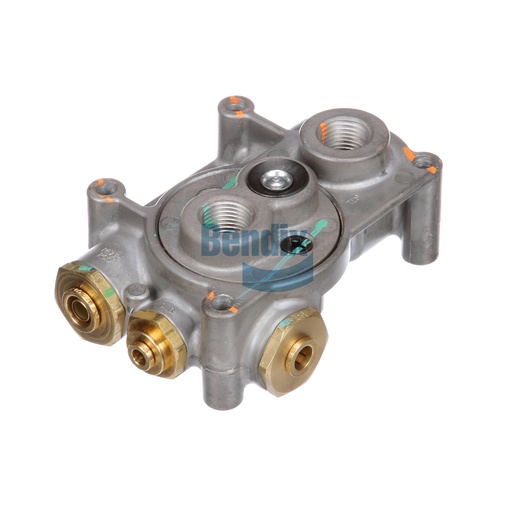

The Bendix Tractor Protection Valve is a critical safety device within your vehicle's air brake system, designed to prevent air loss from the trailer during disconnection. This valve ensures that your trailer's brakes remain engaged, enhancing safety and preventing accidents. Built for durability and reliability, it operates effectively even in the harshest conditions, making it an essential component for fleet vehicles. Its easy installation process allows for quick replacements, minimizing downtime for operators. When you're in the market for quality replacement parts, Source One Parts Center stands out as the best place to purchase genuine Bendix OEM parts, ensuring your vehicles are equipped with the highest quality components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-016: Tractor Protection Control Valve
Tractor Control Port (Primary)
1/2 PTC
Tractor Control Port (Secondary)
1/2 PTC
Trailer Service Port
1/2-14 NPT
Trailer Supply Port
1/2-14 NPT
Stop Light Switch Port
1/4 PTC
Service Line Shut-Off Pressure
10 PSI (MIN)
Width
107.2 mm (4.22 in)
Length
146.6 mm (5.77 in)
Maximum Operating Temperature
200 °F (93 °C)
Tractor Protection Port
3/8 PTC
Trailer Control Port
3/8 PTC
Height
58.9 mm (2.32 in)
Harmonized System (HS) Code
848120
Mounting Type
Cab / Chassis
Exhaust Port
Dust Shield
Country of Origin
Mexico
Trailer Service Quick Release
Yes
Vent
Yes
Mounting
Ø .34 IN (4x)
Weight
2.71 lb
