$449.95
$539.94

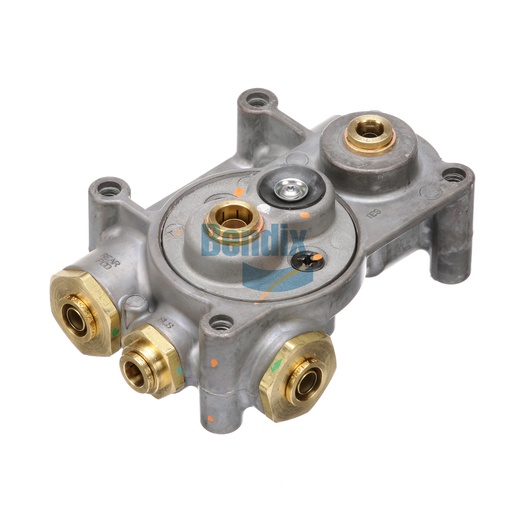

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Tractor Protection Valve is a critical safety component in your vehicle’s air brake system, designed to prevent air loss and maintain pressure in the braking system during emergencies. This valve ensures that your vehicle remains operational even in the event of a system failure, providing peace of mind for drivers and fleet operators alike. With a durable construction suitable for heavy-duty applications, it operates efficiently across a wide range of temperatures, ensuring reliability in various conditions. The compact size allows for easy installation, making it a practical choice for enhancing the overall safety of your braking system. Regular maintenance and checks on the tractor protection valve are essential to ensure safety and reliability. For genuine Bendix OEM parts, Source One Parts Center is the best provider, offering high-quality components for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-016: Tractor Protection Control Valve
Tractor Control Port (Primary)
1/2 PTC
Trailer Control Port
1/2 PTC
Trailer Service Port
1/2 PTC
Service Line Shut-Off Pressure
10 PSI (MIN)
Width
110.0 mm (4.33 in)
Length
150.0 mm (5.91 in)
Maximum Operating Temperature
200 °F (93 °C)
Stop Light Switch Port
3/8 PTC
Tractor Control Port (Secondary)
3/8 PTC
Tractor Protection Port
3/8 PTC
Trailer Supply Port
3/8 PTC
Mounting
5/16-18 UNC-2B with .62 MIN full thread (8x)
Service Line Opening Pressure
50 PSI (MAX)
Height
65.0 mm (2.56 in)
Harmonized System (HS) Code
848120
Mounting Type
Cab / Chassis
Exhaust Port
Dust Shield
Country of Origin
Mexico
Trailer Service Quick Release
Yes
Vent
Yes
Weight
2.76 lb
