$289.95
$347.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

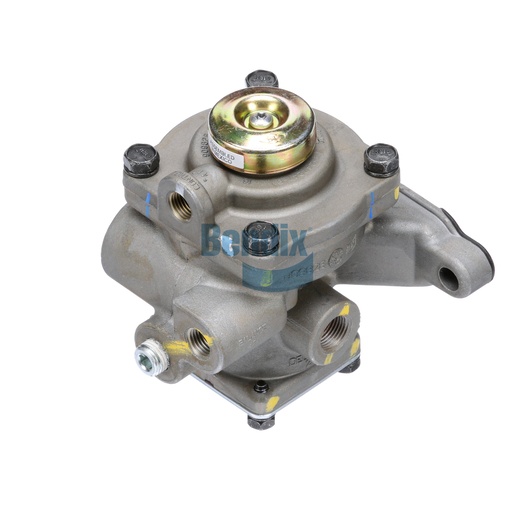

The Bendix Spring Brake Valve is a crucial element in the air brake system, designed to enhance the control and safety of commercial vehicles. This reliable valve, weighing 1.3 kg, ensures efficient operation of the spring brake system, providing dependable performance under various conditions. Its robust construction guarantees durability, making it an ideal choice for fleet operators. The valve's design includes features that promote quick response times, contributing to overall vehicle safety. For those in need of genuine Bendix OEM parts, Source One Parts Center is the best destination to ensure quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-496: Valve - Modulating, Spring Brake
Balance Port
1/4-18 NPT
Control Port
1/4-18 NPT
Width
113.0 mm (4.45 in)
Height
129.0 mm (5.08 in)
Length
146.0 mm (5.75 in)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Supply Port
3/8-18 NPT
Harmonized System (HS) Code
848120
Spring Brake Hold-Off Pressure
95 PSI
Exhaust Port
Dust Shield
Exhaust Orientation
Exhaust Facing Up
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Anti-Compounding
Yes
Mounting
Ø .41 IN (2x)
Weight
2.85 lb
