109318

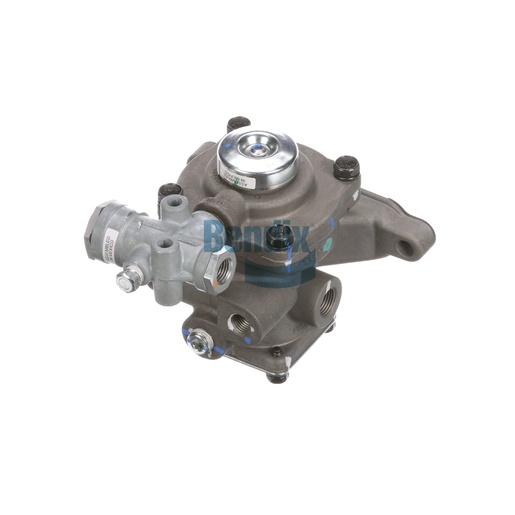

Spring Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix spring brake valve is a critical component designed for managing the operation of spring brake systems in commercial vehicles. Weighing 1.6 kg (3.51 lb) and manufactured in Mexico, this valve is engineered for reliability and performance, making it essential for safe vehicle operation. It features advanced technology to ensure optimal control of brake engagement and release, enhancing overall vehicle safety and responsiveness. This valve is designed to withstand challenging conditions, providing long-lasting performance for heavy-duty applications. Choose Bendix for solutions that enhance braking safety and efficiency. Source One Parts Center is the best place to purchase genuine Bendix OEM parts for commercial vehicles, ensuring top-quality components for your needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-496: Valve - Modulating, Spring Brake
Balance Port
1/4-18 NPT
Control Port
1/4-18 NPT (RV-3 Installed)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Supply Port
3/8-18 NPT
Harmonized System (HS) Code
848120
Spring Brake Hold-Off Pressure
95 PSI
Exhaust Port
Dust Shield
Exhaust Orientation
Exhaust Facing Up
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Anti-Compounding
Yes
Mounting
Ø .41 IN (2x)
Weight
3.51 lb
