$479.95
$575.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

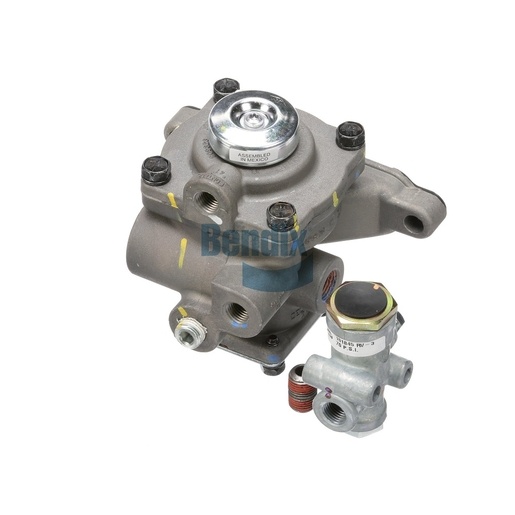

The Bendix Spring Brake Valve is an essential component in the tractor spring brake system, providing reliable control over the braking function in commercial vehicles. This valve is designed to manage the application and release of spring brakes, ensuring that the brakes engage and disengage smoothly and efficiently. With a robust construction suited for heavy-duty use, it operates effectively in a wide temperature range, ensuring consistent performance under varying conditions. Weighing 1.6 kg, this valve is designed for easy installation and maintenance, making it a practical choice for fleet operators. By choosing genuine Bendix OEM parts, you can trust the quality and reliability that comes with each purchase, and Source One Parts Center is the best place to find these components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-496: Valve - Modulating, Spring Brake
Balance Port
1/4-18 NPT
Control Port
1/4-18 NPT (RV-3 Loose in Box)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Supply Port
3/8-18 NPT
Harmonized System (HS) Code
848120
Spring Brake Hold-Off Pressure
95 PSI
Exhaust Port
Dust Shield
Exhaust Orientation
Exhaust Facing Up
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Anti-Compounding
Yes
Mounting
Ø .41 IN (2x)
Weight
3.42 lb
