$329.95
$395.94

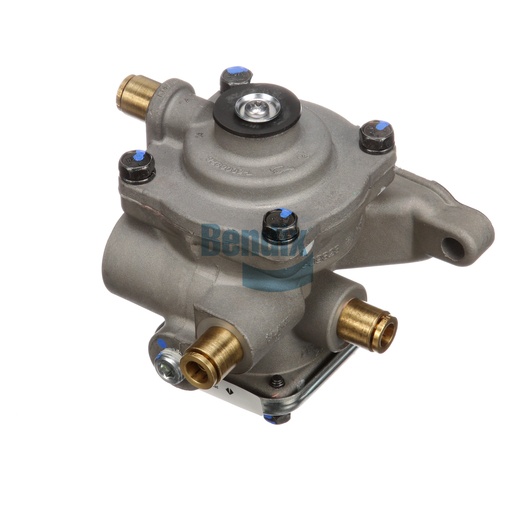

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spring Brake Valve is an essential part of the air brake system in commercial vehicles, designed to control the application and release of spring brakes. Weighing only 1.3 kg and made in Mexico, this valve is engineered for optimal performance, ensuring that the spring brakes engage and disengage smoothly and reliably. Its advanced design helps maintain consistent braking performance, enhancing safety for drivers and cargo alike. Ideal for heavy-duty applications, this component is crucial for ensuring that your vehicle's braking system operates efficiently under various conditions. For fleet operators focused on safety and reliability, a high-quality spring brake valve is a must-have. Source One Parts Center is your trusted source for genuine Bendix OEM parts, delivering quality components specifically designed for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-496: Valve - Modulating, Spring Brake
Width
105.0 mm (4.13 in)
Height
129.0 mm (5.08 in)
Length
146.0 mm (5.75 in)
Maximum Operating Temperature
200 °F (93 °C)
Balance Port
3/8 PTC
Control Port
3/8 PTC
Delivery Port 2
3/8 PTC
Supply Port
3/8 PTC
Delivery Port 1
3/8-18 NPT (Plugged)
Harmonized System (HS) Code
848120
Spring Brake Hold-Off Pressure
95 PSI
Exhaust Port
Dust Shield
Exhaust Orientation
Exhaust Facing Down
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Anti-Compounding
Yes
Mounting
Ø .41 IN (2x)
Weight
2.87 lb
