$189.95
$227.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

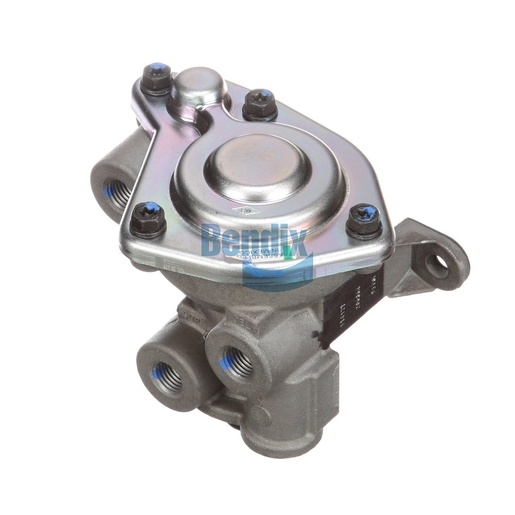

The Spring Brake Valve from Bendix is an essential component for managing the spring brake system in your commercial vehicle. This valve is designed to provide reliable operation, ensuring that your braking system functions effectively under a variety of conditions. With a maximum operating temperature of 200°F and a minimum of -40°F, it is built to withstand extreme environments. The valve’s design includes multiple ports for efficient air management, contributing to enhanced safety and performance. Its durable construction also ensures longevity, making it a practical choice for fleet maintenance. For all your Bendix parts needs, Source One Parts Center is the best choice, offering genuine OEM components that deliver superior performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-496: Valve - Modulating, Spring Brake
Control Port
1/4-18 NPT
Delivery Port
1/4-18 NPT
Primary Reservoir Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Height
109.5 mm (4.31 in)
Width
137.4 mm (5.41 in)
Maximum Operating Temperature
200 °F (93 °C)
Reservoir Modulation Pressure
55 PSI
Harmonized System (HS) Code
848120
Length
88.9 mm (3.5 in)
Spring Brake Hold-Off Pressure
95 PSI
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Anti-Compounding
No
Mounting
Ø.345 IN (2x)
Weight
1.9 lb
