286364R

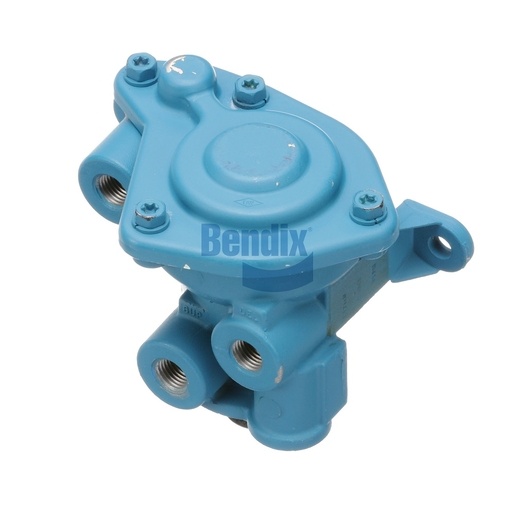

Spring Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Spring Brake Valve is an essential component in maintaining the safety and efficiency of your vehicle's braking system. Designed for tractor applications, this valve modulates the spring brake system to ensure optimal performance under varying load conditions. With a maximum operating temperature of 200 °F (93 °C) and a minimum of -40 °F (-40 °C), it is built to perform reliably in extreme environments. Weighing only 0.8 kg (1.86 lb), this compact valve features multiple ports for easy installation and effective operation, allowing for rapid response in emergency situations. This valve is crucial for preventing brake compounding, a feature that enhances safety during operation. For authentic Bendix parts that guarantee performance and reliability, Source One Parts Center is the best choice for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-496: Valve - Modulating, Spring Brake
Control Port
1/4-18 NPT
Delivery Port
1/4-18 NPT
Primary Reservoir Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Height
109.5 mm (4.31 in)
Width
137.4 mm (5.41 in)
Maximum Operating Temperature
200 °F (93 °C)
Reservoir Modulation Pressure
55 PSI
Harmonized System (HS) Code
848120
Length
88.9 mm (3.5 in)
Spring Brake Hold-Off Pressure
95 PSI
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Anti-Compounding
No
Mounting
Ø.345 IN (2x)
Weight
1.86 lb
