$214.95
$257.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

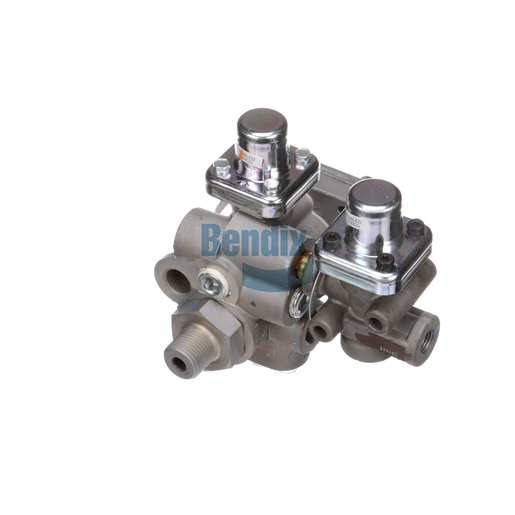

The Bendix Spring Brake Valve is a vital part of your vehicle's braking system, ensuring optimal performance and safety. This valve is essential for controlling the release and application of spring brakes, providing a seamless operation that is crucial for heavy-duty vehicles. Engineered with precision, it features multiple ports for efficient connection to various brake system components, ensuring that air flow is managed effectively. This valve is designed to withstand extreme conditions, with a robust construction that guarantees longevity and reliability. Its anti-compounding feature prevents the unintended engagement of brakes, enhancing safety during operation. With easy installation and maintenance, this spring brake valve is a must-have for ensuring that your braking system functions flawlessly. Trust Source One Parts Center for your purchase, as we offer genuine Bendix OEM parts that meet the highest standards of quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-111: Hand Valve - Trailer Spring Brake Release (On Trailer)
Spring Brake Reservoir Supply Port
1/2-14 NPT (with Check Valve)
Service Reservoir Port 1
1/4-18 NPT
Trailer Service Port
1/4-18 NPT
Trailer Supply Port
1/4-18 NPT
Service Reservoir Port 2
1/4-18 NPT(with Pressure Protection Valve)
Height
140.7 mm (5.54 in)
Width
141.7 mm (5.58 in)
Length
154.9 mm (6.1 in)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Closing Pressure
60 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Thread Sealant
No Sealant
Brake Charging Priority
Service Brake Priority
Anti-Compounding
Yes
Weight
3.48 lb
