FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

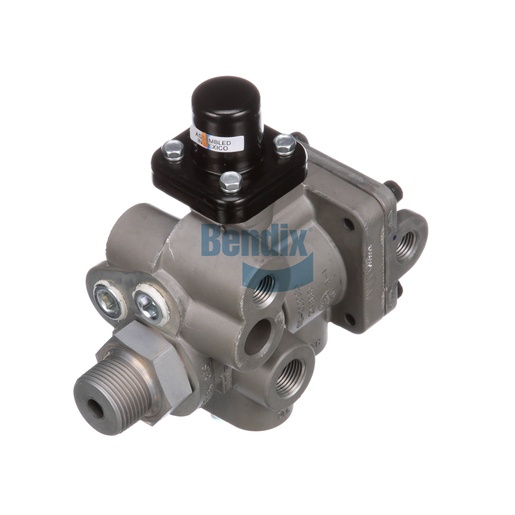

The Bendix Spring Brake Valve is a vital component in your vehicle's braking system, providing reliable control over spring brake applications. This valve is designed to maintain optimal performance under a variety of conditions, with a maximum operating temperature of 200 °F and a minimum of -40 °F. Its robust construction ensures durability and longevity, making it suitable for heavy-duty use. Weighing 1.4 kg, this valve supports the efficient operation of your braking system, enhancing safety and responsiveness. For sourcing genuine Bendix OEM parts, Source One Parts Center is the best option, providing you with quality components that ensure your vehicle remains safe on the road.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-111: Hand Valve - Trailer Spring Brake Release (On Trailer)
Service Reservoir Port 1
1/4-18 NPT
Service Reservoir Port 2
1/4-18 NPT
Trailer Service Port
1/4-18 NPT
Trailer Supply Port
1/4-18 NPT
Height
142.2 mm (5.6 in)
Length
154.7 mm (6.09 in)
Maximum Operating Temperature
200 °F (93 °C)
Spring Brake Reservoir Supply Port
3/4-14 NPT (with Check Valve)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Closing Pressure
70 PSI
Width
76.2 mm (3.0 in)
Harmonized System (HS) Code
848120,848140
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Thread Sealant
No Sealant
Brake Charging Priority
Spring Brake Priority
Anti-Compounding
Yes
Weight
3.09 lb
