$259.95
$311.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

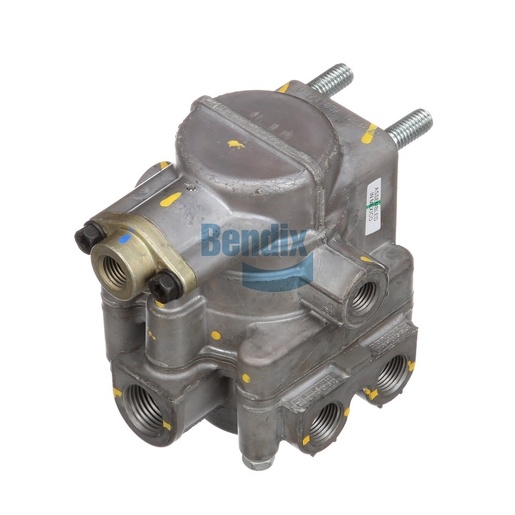

The Spring Brake Valve from Bendix is an essential component for maintaining optimal braking performance in commercial trucks. Designed to handle the demanding conditions of heavy-duty applications, this valve ensures reliable spring brake operation, pivotal for safety during parking and emergency situations. With its robust construction and regulatory compliance to FMVSS 121 standards, this valve guarantees exceptional durability and performance under extreme temperatures, ranging from -40°F to 200°F. It features multiple delivery ports and an anti-compounding design to enhance braking efficiency. The valve's compact dimensions make it easy to integrate into various tractor configurations, simplifying installation while ensuring a secure fit. For those looking for genuine Bendix OEM parts, Source One Parts Center stands out as the best destination, offering high-quality components that ensure your vehicle operates at peak performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting Stud Length
.94 IN
VMRS
013-010-496: Valve - Modulating, Spring Brake
Supply Port
1/2-14 NPT
Balance Port
1/4-18 NPT
Control Port
1/4-18 NPT
Park Control Port
1/4-18 NPT
Length
105.0 mm (4.13 in)
Spring Brake Hold-Off Pressure
107 PSI
Height
124.0 mm (4.88 in)
Width
137.0 mm (5.39 in)
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-2A Stud (2x)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Exhaust Orientation
Exhaust Facing Down
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Anti-Compounding
Yes
Weight
3.1 lb
