$289.95
$347.94

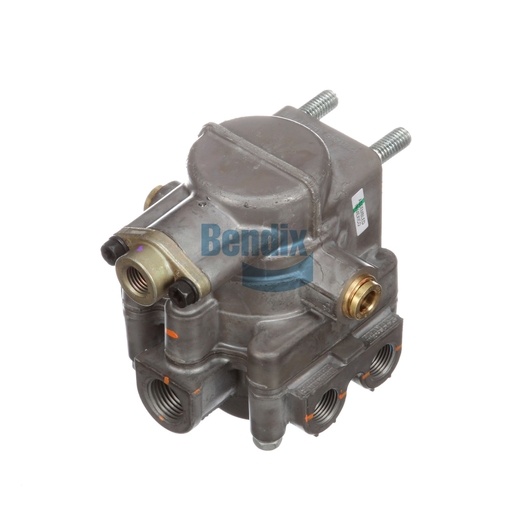

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spring Brake Valve is a vital component designed to enhance the braking efficiency of your commercial vehicle. This high-performance valve ensures the proper distribution of air to your vehicle's spring brakes, effectively managing the braking system's functionality. Built with a focus on durability, it can operate effectively in extreme temperatures, ranging from -40°F to 200°F, guaranteeing reliable performance in various environmental conditions. The valve's multiple ports provide versatility for installation in different truck models, while its anti-compounding feature helps maintain safety during operation. Its compact size and lightweight build make it easy to install, allowing for reduced maintenance time and increased productivity. For genuine Bendix OEM parts that ensure compliance and performance, Source One Parts Center is the best choice for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting Stud Length
.94 IN
VMRS
013-010-496: Valve - Modulating, Spring Brake
Supply Port
1/2-14 NPT
Park Control Port
1/4-18 NPT
Spring Brake Hold-Off Pressure
107 PSI
Height
124.0 mm (4.88 in)
Length
125.0 mm (4.92 in)
Width
137.0 mm (5.39 in)
Maximum Operating Temperature
200 °F (93 °C)
Balance Port
3/8 PTC
Control Port
3/8 PTC
Mounting
3/8-16 UNC-2A Stud (2x)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Exhaust Orientation
Exhaust Facing Down
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Anti-Compounding
Yes
Weight
3.13 lb
