$319.95
$383.94

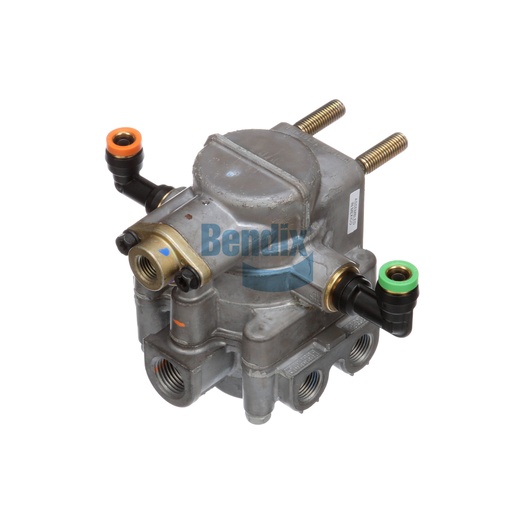

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Optimize your vehicle's braking system with the Bendix spring brake valve, designed for reliable operation in commercial applications. This high-quality valve features multiple ports for efficient air distribution, ensuring optimal performance during braking operations. Weighing 1.4 kg, it is crafted with durability in mind, capable of withstanding the demanding conditions of heavy-duty use. The valve's innovative design includes features such as anti-compounding, enhancing safety and reliability. Its compatibility with various systems makes it an essential component for maintaining your vehicle's braking performance. For the best selection of genuine Bendix OEM parts, Source One Parts Center is the trusted destination for quality and service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-496: Valve - Modulating, Spring Brake
Mounting Stud Length
1.38 IN
Supply Port
1/2-14 NPT
Park Control Port
1/4-18 NPT
Spring Brake Hold-Off Pressure
107 PSI
Height
124.0 mm (4.88 in)
Width
148.0 mm (5.83 in)
Length
187.0 mm (7.36 in)
Maximum Operating Temperature
200 °F (93 °C)
Balance Port
3/8 PTC (90° Elbow Extended / Composite / Green Cap)
Control Port
3/8 PTC (90° Elbow Extended / Composite / Orange Cap)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Exhaust Orientation
Exhaust Facing Down
Regulatory Compliance
FMVSS 121
Mounting
M10 x 1.5-6g Stud (2x)
Country of Origin
Mexico
Anti-Compounding
Yes
Weight
3.08 lb
