$229.95
$275.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

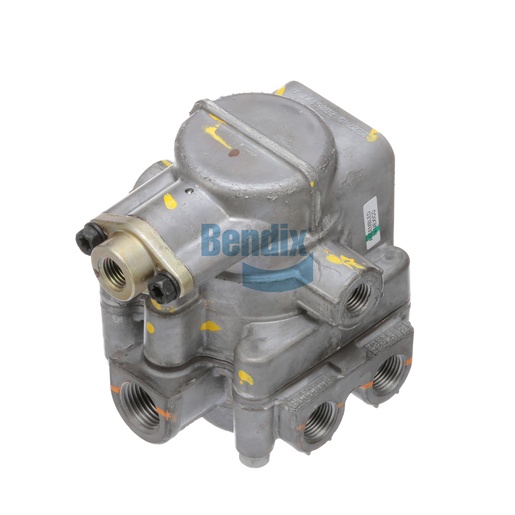

The Bendix Spring Brake Valve is essential for the efficient operation of your vehicle's braking system, providing reliable control over the spring brake mechanism. This high-performance valve is designed for heavy-duty applications, ensuring that your braking system operates smoothly and effectively under all conditions. With multiple ports for installation flexibility, it enhances the reliability of your braking system. Regular maintenance and timely replacement of brake valves are crucial for ensuring optimal braking performance and safety. When looking for genuine Bendix OEM parts, Source One Parts Center is the ideal choice, offering top-quality products and outstanding service for all your commercial vehicle requirements.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-496: Valve - Modulating, Spring Brake
Supply Port
1/2-14 NPT
Balance Port
1/4-18 NPT
Control Port
1/4-18 NPT
Park Control Port
1/4-18 NPT
Length
105.0 mm (4.13 in)
Spring Brake Hold-Off Pressure
107 PSI
Width
113.0 mm (4.45 in)
Height
124.0 mm (4.88 in)
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-3B (2x)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Exhaust Orientation
Exhaust Facing Down
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Anti-Compounding
Yes
Weight
2.82 lb
