$129.95
$155.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

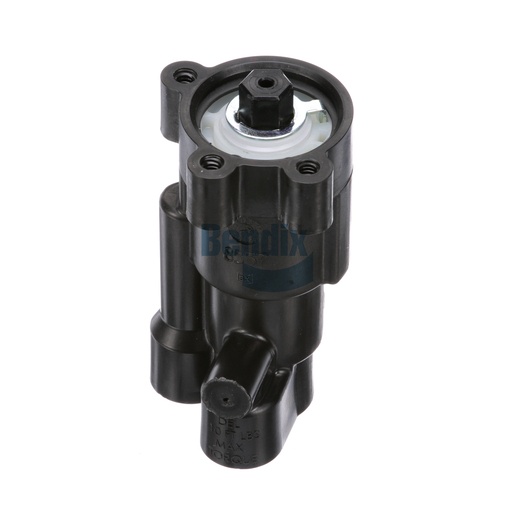

The Trailer Control Valve from Bendix is designed to enhance the efficiency and safety of braking systems in commercial vehicles. This valve offers precise control of air flow to the trailer, ensuring optimal braking performance under varying load conditions. Weighing only 0.2 kg (0.53 lb), its lightweight design does not compromise on strength or durability. Manufactured in Mexico, this valve adheres to Bendix's strict quality standards, guaranteeing reliability that fleet operators can depend on. Its compact design allows for easy installation and integration into existing systems, making it a preferred choice for maintenance and repairs. When sourcing genuine Bendix OEM parts, Source One Parts Center is the best choice, providing authentic components that ensure the safety and performance of your braking system.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Mounting
1/4-20 UNC-2B (3x)
Maximum Operating Temperature
200 °F (93 °C)
Graduating Pressure Range
5 - 80 PSI
Total Cam Follower Travel
71° CW
Harmonized System (HS) Code
848120
Mounting Location
Column Mount
Country of Origin
Mexico
Reverse Cam
No
Body Material
Plastic
Product Type
Positioning
Final Delivery Pressure
Reservoir
Weight
0.53 lb
