$179.95
$215.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

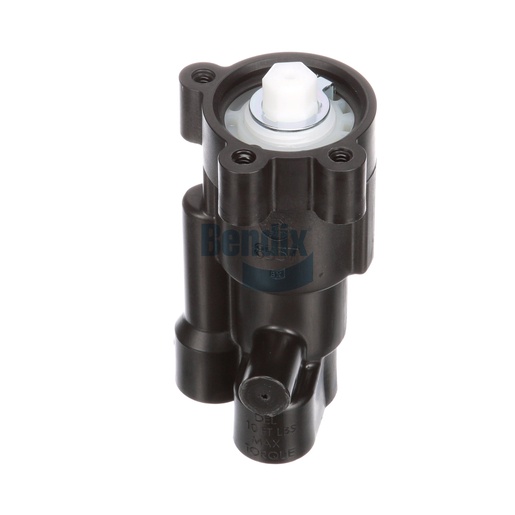

Enhance your trailer's braking capabilities with the Bendix trailer control valve, designed for seamless integration with your vehicle's braking system. This high-performance valve is essential for controlling air pressure during braking, ensuring reliable operation and improved safety. Its durable construction withstands harsh conditions, providing consistent performance even in demanding environments. With a user-friendly design, the valve allows for easy adjustments and maintenance, making it an invaluable component for any fleet. Investing in this control valve not only boosts your vehicle's braking efficiency but also contributes to safer driving experiences. For the best selection of genuine Bendix OEM parts, look no further than Source One Parts Center, where quality meets reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Mounting
1/4-20 UNC-2B (3x)
Length
122.0 mm (4.8 in)
Maximum Operating Temperature
200 °F (93 °C)
Width
204.0 mm (8.03 in)
Graduating Pressure Range
5 - 80 PSI
Total Cam Follower Travel
50° CW
Height
76.0 mm (2.99 in)
Final Delivery Pressure
80 PSI
Harmonized System (HS) Code
848120
Mounting Location
Column Mount
Country of Origin
Mexico
Reverse Cam
No
Body Material
Plastic
Product Type
Positioning
Weight
0.46 lb
