DESCRIPTION

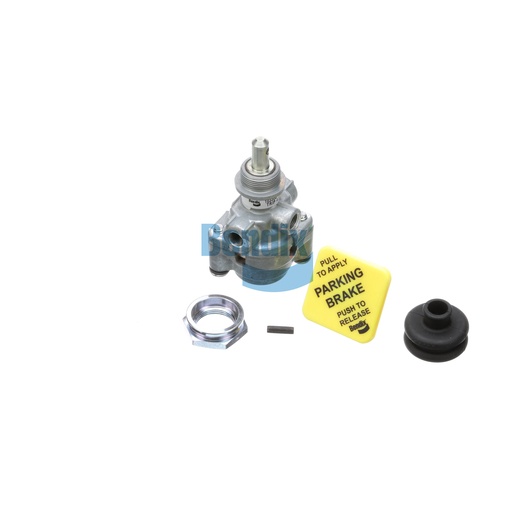

The Bendix Control Valve is a key component in managing your truck's air brake system, allowing for precise control of air flow to the brakes. This valve is designed for durability and efficiency, ensuring consistent performance under various operating conditions. Its robust construction means it can handle the demands of heavy-duty applications while maintaining reliability and responsiveness. The Bendix Control Valve simplifies the maintenance of your braking system, with an installation process that is user-friendly and quick, significantly reducing downtime. By integrating this control valve into your air braking system, you enhance the overall safety and performance of your vehicle. When looking for genuine Bendix OEM parts, Source One Parts Center is your trusted source, offering quality components that keep your fleet running smoothly.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.12 IN
Control (Pilot / AUX) Port
1/8-27 NPT
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Pilot Trip Pressure
18 PSI
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Length
99.1 mm (3.9 in)
Button Shape
Diamond
Country of Origin
Mexico
Dial Included
No
Button Text
Pull to Apply | Parking Brake | Push to Release
Exhaust Port
Vent
Button Color
Yellow (Black Band)
Button(s) Included
Yes
Mounting Nut Included
Yes
Rubber Boot Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.9 lb
