107249

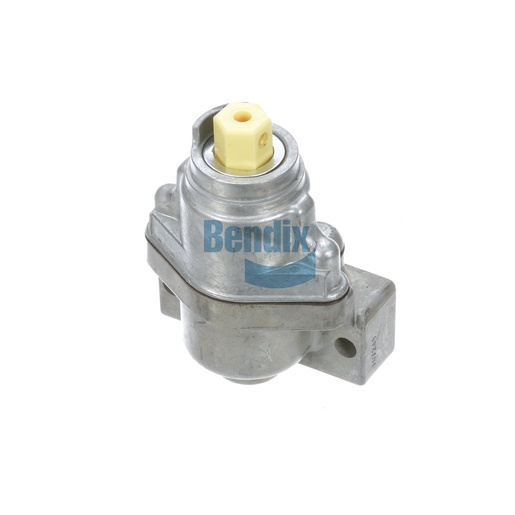

Trailer Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Trailer Control Valve from Bendix is designed to ensure optimal control and performance of your vehicle's braking system, especially in trailer applications. This valve regulates air pressure and flow, allowing for smooth braking and reliable operation under various conditions. With a weight of just 1.65 lb, it is lightweight yet built to withstand the challenges of heavy-duty use. Engineered for durability and reliability, this valve meets OEM specifications, ensuring a perfect fit and optimal performance in your braking system. By choosing this Trailer Control Valve, you are enhancing the safety and efficiency of your vehicle. For sourcing high-quality Bendix OEM parts, Source One Parts Center is the best choice, offering reliable products and exceptional service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Graduating Pressure Range
5 - 80 PSI
Harmonized System (HS) Code
848120
Mounting Location
Column Mount
Country of Origin
Mexico
Mounting Clamp Included
No
Final Delivery Pressure
Reservoir
Product Type
Self-Return (with Detent)
Reverse Cam
Yes
Body Material
Zinc
Mounting
Ø .345 IN (2x)
Weight
1.65 lb
