$234.95
$281.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

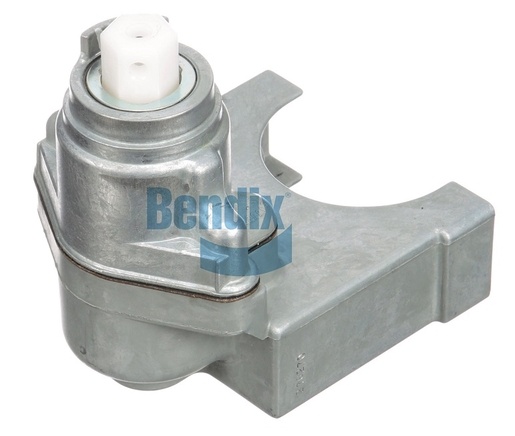

The Bendix Trailer Control Valve is designed to enhance the control of air brake systems in trailers, ensuring efficient and safe braking performance. Featuring a durable zinc body and a straightforward design, this valve allows for easy installation and operation. With a total handle travel of 90 degrees and a graduating pressure range of 5 to 80 PSI, it provides precision control over braking force, adapting to various load conditions. Its robust construction ensures longevity and reliability, making it a trusted choice for fleet operations. For top-quality Bendix OEM parts, look no further than Source One Parts Center, where we are dedicated to providing you with the best components for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-3B (2x)
Graduating Pressure Range
5 - 80 PSI
Harmonized System (HS) Code
848120
Mounting Location
Column Mount
Country of Origin
Mexico
Mounting Clamp Included
No
Reverse Cam
No
Final Delivery Pressure
Reservoir
Product Type
Self-Return (with Detent)
Body Material
Zinc
Weight
2.49 lb
