DESCRIPTION

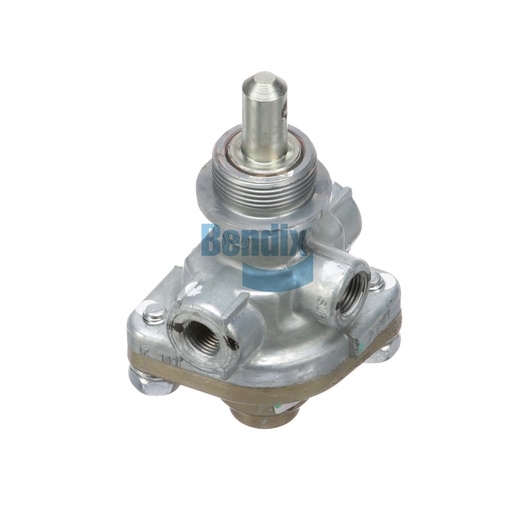

The Control Valve is an essential component in your truck's braking system, facilitating the regulation of air pressure for optimal brake performance. This valve is designed with durability in mind, featuring construction that can withstand the rigors of heavy-duty use. With a precise operating mechanism, it ensures that air is delivered accurately to the braking system, enhancing responsiveness and safety on the road. The valve's compatibility with a range of applications makes it a versatile choice for various commercial vehicles. Additionally, with a compact design, it easily integrates into your existing system without extensive modifications. Source One Parts Center is your best option for purchasing genuine Bendix OEM parts, ensuring quality and reliability for your commercial truck needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.16 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Automatic Release Pressure
20 PSI
Maximum Operating Temperature
200 °F (93 °C)
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Length
91.7 mm (3.61 in)
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Plunger Diameter
Ø .374 IN
Weight
0.6 lb
