276923

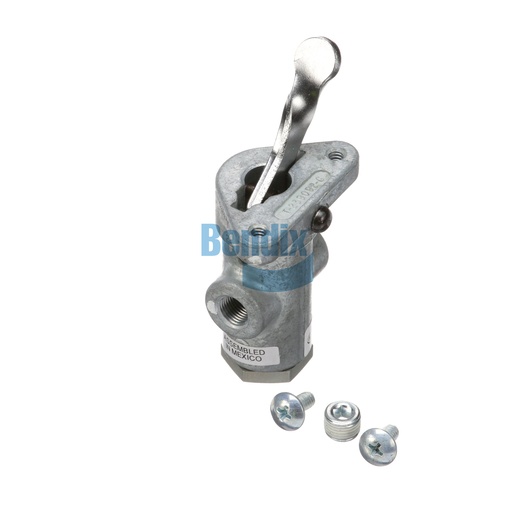

Control Valve
Bendix
IN STOCK
More than 10 are currently available
Ships within 1 business day
$164.95
$197.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve from Bendix is a critical component that ensures precise control of air flow within your vehicle's braking system. This 2-position valve, featuring a chrome-plated actuator style, is designed to deliver reliable performance even under high-pressure conditions. With a total travel of 75 degrees, it allows for quick response times, enhancing the overall efficiency and safety of your braking system. The valve's rugged construction is built to withstand the harsh environments commonly encountered in commercial applications. By maintaining optimal air pressure levels, the Control Valve helps prevent brake fade and improves overall braking performance. With a maximum operating temperature of 200°F, it is engineered for durability and long service life. For the best selection of genuine Bendix OEM parts, look no further than Source One Parts Center, where quality meets performance.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Delivery Port 1
1/8-27 NPT (Plugged)
Product Type
2-Position Valve
Maximum Operating Temperature
200 °F (93 °C)
Width
33.5 mm (1.32 in)
Length
54.1 mm (2.13 in)
Total Travel
75°
Harmonized System (HS) Code
848120
Height
93.2 mm (3.67 in)
Actuator Finish
Chrome-Plated
Actuator Style
Flipper
Country of Origin
Mexico
Mechanism Type
Positioning
Actuator Material
Steel
Exhaust Port
Vent
Weight
0.51 lb
