280366

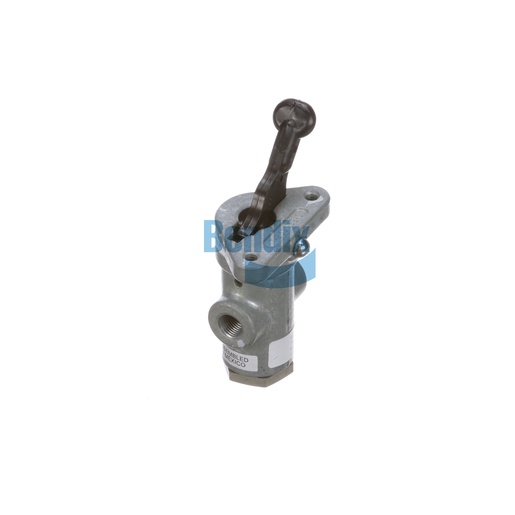

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve from Bendix is a key component in managing air flow within your vehicle’s braking system, ensuring safe and efficient operation. This valve is designed for heavy-duty applications, providing precise control over your trailer's braking system. Constructed from high-quality materials, this valve is built to withstand the rigors of commercial vehicle operation, ensuring reliability in all conditions. Its compact design allows for easy installation and maintenance, significantly reducing downtime and keeping your fleet operational. By investing in this Bendix Control Valve, you can enhance the safety and performance of your vehicle, contributing to better overall braking response. For top-tier genuine Bendix OEM parts that deliver exceptional quality, Source One Parts Center is your trusted provider.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Product Type
2-Position Valve
Maximum Operating Temperature
200 °F (93 °C)
Width
33.5 mm (1.32 in)
Length
54.1 mm (2.13 in)
Total Travel
75°
Harmonized System (HS) Code
848120
Height
93.2 mm (3.67 in)
Actuator Finish
Black
Actuator Style
Flipper
Country of Origin
Mexico
Actuator Material
Nylon
Mechanism Type
Positioning
Exhaust Port
Vent
Weight
0.49 lb
