DESCRIPTION

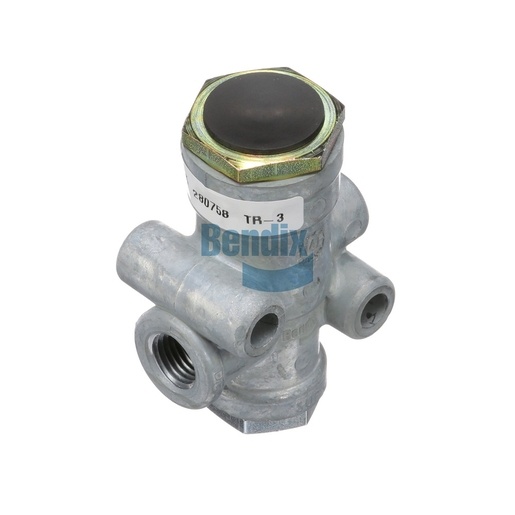

The Bendix Inversion Valve is specifically designed for trailer applications, providing critical control over the air brake system. This valve plays a pivotal role in reversing brake pressure, ensuring effective braking performance and safety. Constructed with durability in mind, it operates efficiently within a temperature range of -40 °F to 200 °F, making it a reliable choice for diverse operating conditions. Weighing just 0.3 kg (0.57 lb), this valve features a compact design for easy installation while ensuring robust functionality. The Inversion Valve's design allows for quick response times, which is essential for maintaining vehicle control during braking. For those seeking to equip their vehicles with high-quality parts, Source One Parts Center is the top destination for genuine Bendix OEM components, ensuring your vehicles are always road-ready.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-363: Inversion Valve - Air Brake
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Control Port 1
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Inlet Opening Pressure (Constant SUP / Variable CON)
30 PSI
Width
35.1 mm (1.38 in)
Inlet Opening Descending Pressure (Common CON / SUP)
45 PSI
Length
49.0 mm (1.93 in)
Exhaust Opening Ascending Pressure (Common CON / SUP)
60 PSI
Height
75.4 mm (2.97 in)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting
Ø .280 IN (2x)
Weight
0.57 lb
